| 원래 장소: | 센즈헨, 중국 |
|---|---|
| 브랜드 이름: | OPTFOCUS |
| 인증: | CE & FC |
| 모델 번호: | OBX-3310G-10 |
| 최소 주문 수량: | 1 쌍 |
| 가격: | USD 15.99 |
| 포장 세부 사항: | 판매자 표준 수출 패키지 |
| 배달 시간: | 3-6 일 후 이내에 지불을 얻으세요 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 능력: | 10000 PC 한 달 |
| 상품 이름: | SFP 광 전송부 | 사고 방식: | 1330-1270NM |
|---|---|---|---|
| 거리: | 10KM | 보증: | 1년 |
| 키워드: | 스프피 송수신기 제조사들 | 자료 비율: | 10Gb/s |
| 접속구의 형태: | LC |
OPTFOCUS 10G Base SFP Optical Transceiver OBX-3310G-10 BI-BD SM LC 10KM 1330-1270NM SFP Optical Transceiver DDM
| SFP Optical Transceiver Details | |
| Model Number:OBX-3310G-10 | Connector:Single LC |
| Place of Origin:China | Distance:10KM |
| Brand Name:OPTFOCUS | Wavelength:1330nm-1270nm |
| Key Feature1:SHENZHEN, China (Mainland) | Compatible: Huawei,Cisco,Hp |
| Key Feature2:SFP OPTICAL TRANSCEIVER | DDM:With DDM |
| Key Feature3:10G | Product status:Stock |
| Fiber Type:SM | |
|
SFP Optical Transceiver Recommended Operating Conditions |
||||
| Parameter | Symbol | Min. | Max. | Unit |
| Storage Temperature | TSTG | -40 | 85 | °C |
| Operating Case Temperature | TC | 0 | 70 | °C |
| Power Supply Voltage | VCC | 3.1 | 3.5 | V |
| Total Power Supply Current | ICC | - | 350 | mA |
| SFP Optical Transceiver Transmitter Characteristics | |||||
| Parameter | Symbol | Min. | Typ. | Max. | Units |
| Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm |
| Optical Transmitter Power off | POFF | - | - | -39 | dBm |
| Output Center Wavelength | λ | 1480 | - | 1500 | nm |
| Output Spectrum Width | Δλ | - | - | 1.0 | nm |
| Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
| Extinction Ratio | ER | 9 | - | - | dB |
| Optical Rise Time | - | - | - | 260 | ps |
| Optical Fall Time | - | - | - | 260 | ps |
| Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | ||||
| Tolerence to Tx Back Reflection | - | -15 | - | - | dB |
| Data Rate | - | - | 1.25 | - | Gb/s |
| Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV |
| Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm |
| Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V |
| Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V |
| Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V |
| Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V |

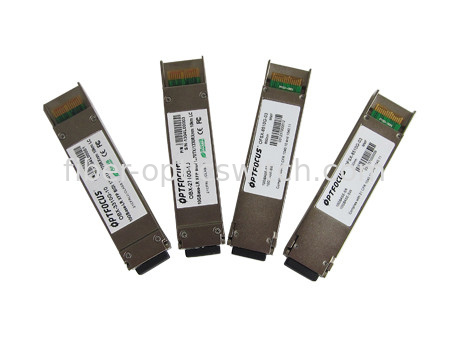

SFP Optical Transceiver image details
| Packaging & Delivery(SFP Optical Transceiver ) | |
| Selling Units:Single item | Single package size: 0.8X0.3X0.3 cm |
| Single gross weight:0.100 kg | Package Type:carton |
SFP Optical Transceiver Standard Application
ATM SDH PDH SONET Network
Data Communication Network
Telecom Communication Network
FAQ
Q:Are you trading company or manufacturer?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.
Q:Do you have MOQ?
A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.
Q.what can you buy from us?
A:ONU,OLT,MC,POE,SWITCH,PASSIVE COMPONENT, SFP OPTICAL TRANSCEIVER
